The Device Schedule Calendar visualizes the execution timeline of scheduled tasks. It offers two modes:

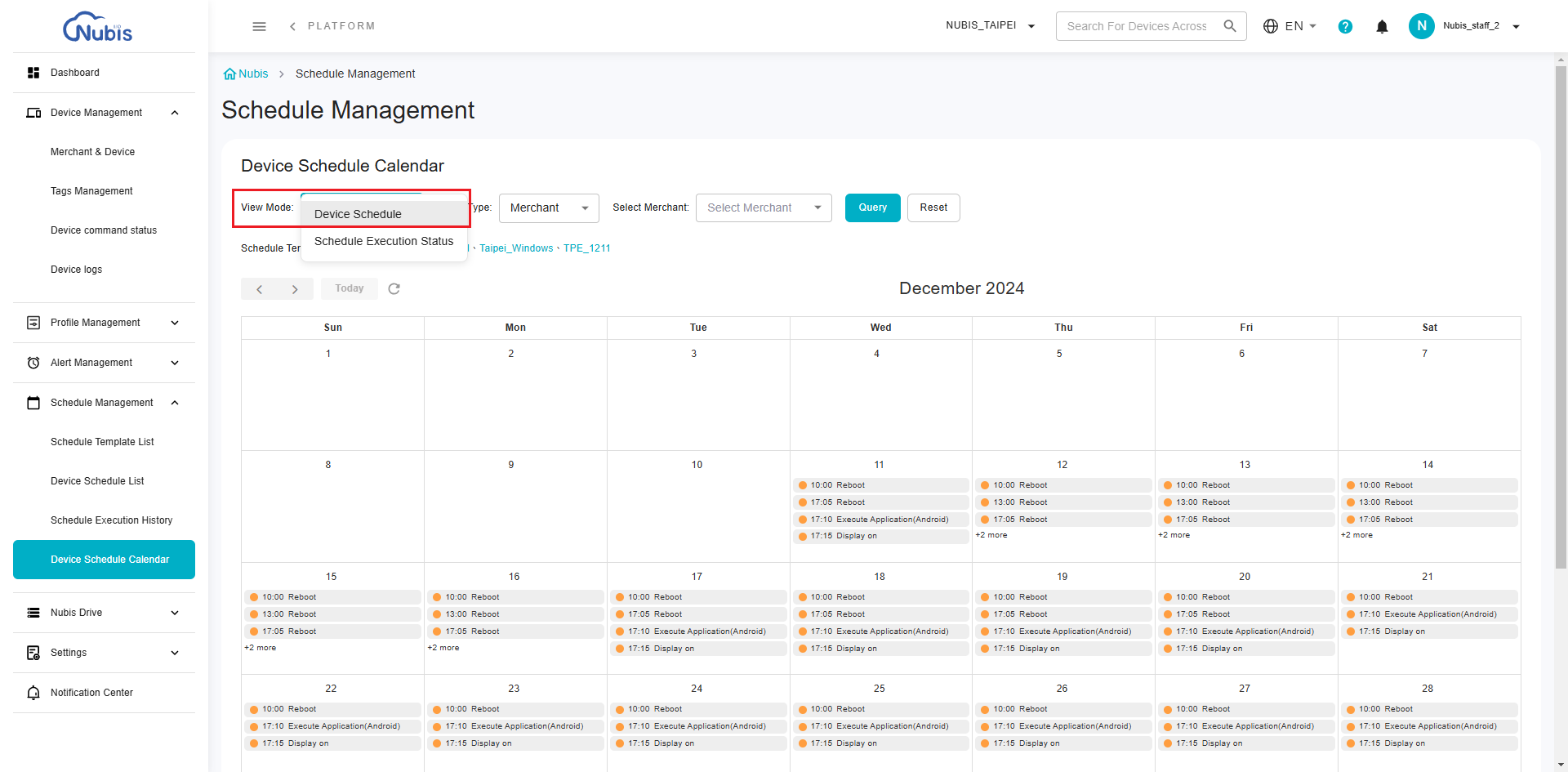

1. Device Schedule Mode:

   • Displays the planned execution times for scheduled tasks.
   • Clicking on a task opens a settings pop-up.

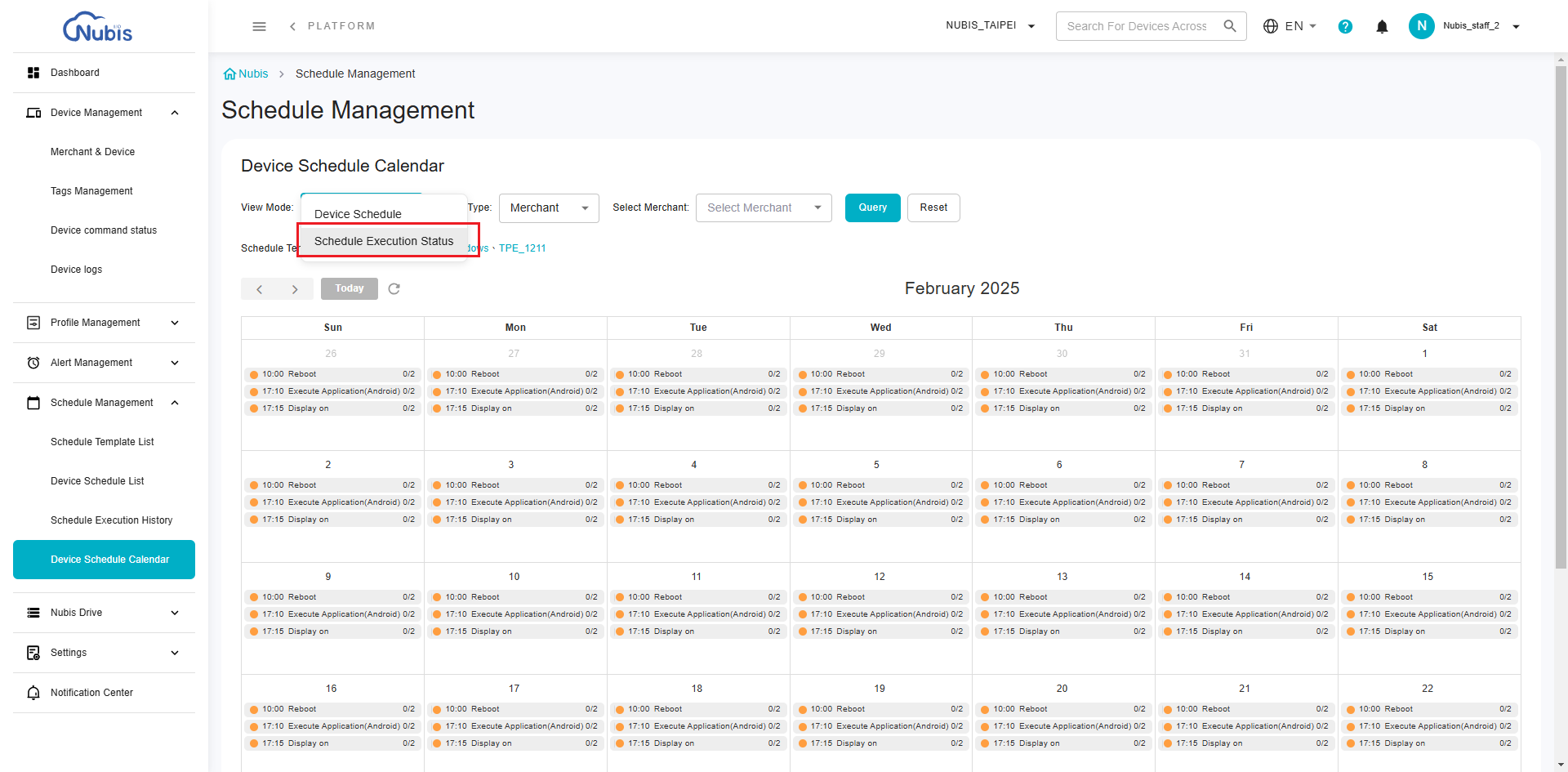

2. Device Execution Status:

   • Shows execution results of scheduled tasks after their designated times.
   • Clicking a completed task redirects to the Schedule Execution History for detailed device status.

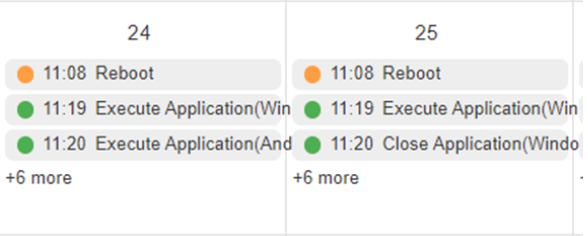

3. The color of the dot placed before the scheduled task name:
   • Shows execution results of scheduled tasks after their designated times.
   • Clicking a completed task redirects to the Schedule Execution History for detailed device status.

     • Green: All devices that apply this scheduled task have been deployed.

     • Yellow: Some devices that apply this scheduled task have not been deployed. Thus, it may fail to execute the scheduled tasks at the designated time. (no execution)

4. Colors for Task Status:

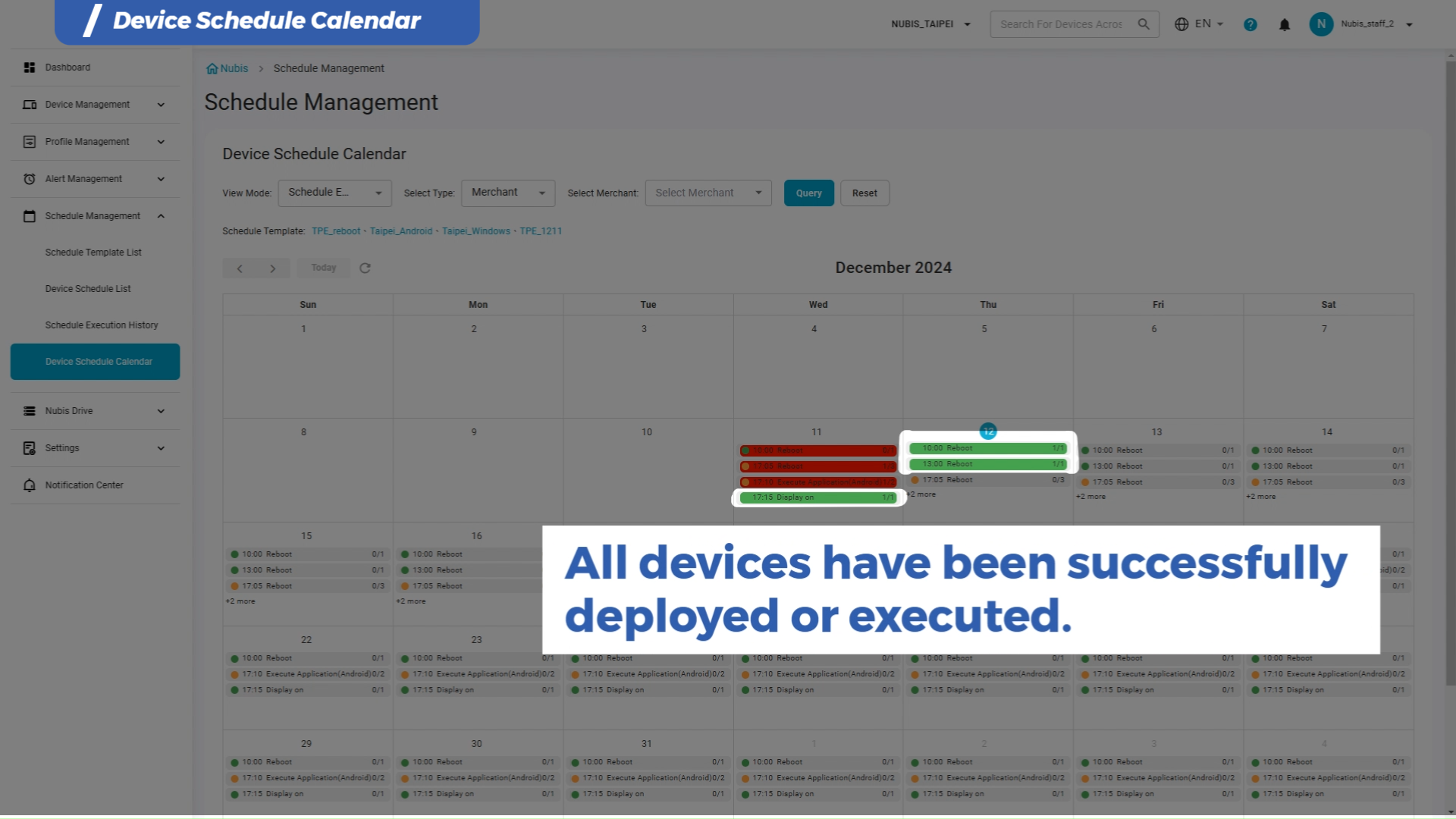

   • Green color means that All devices have been successfully deployed or executed.
     All devices that applied this scheduled task were successfully executed within the designated time. The denominator represents the number of devices scheduled for execution, while the numerator indicates the number of devices that were successfully executed. Devices with a deployment status of 'Ignored' will not be included in the denominator.

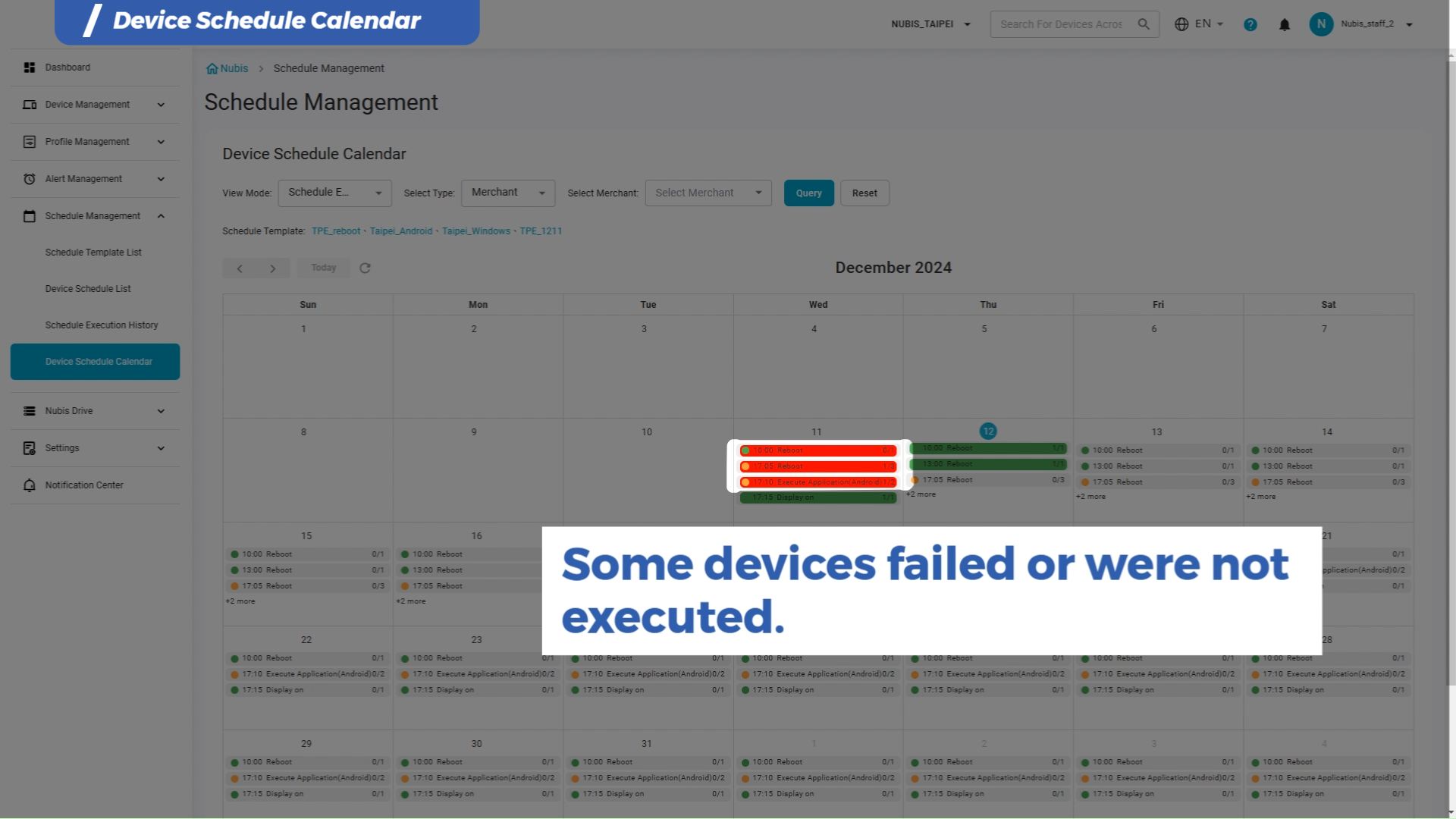

   • Red color means that Some devices failed or were not executed.
     Some devices that applied this scheduled task failed to execute or were not executed within the designated time.

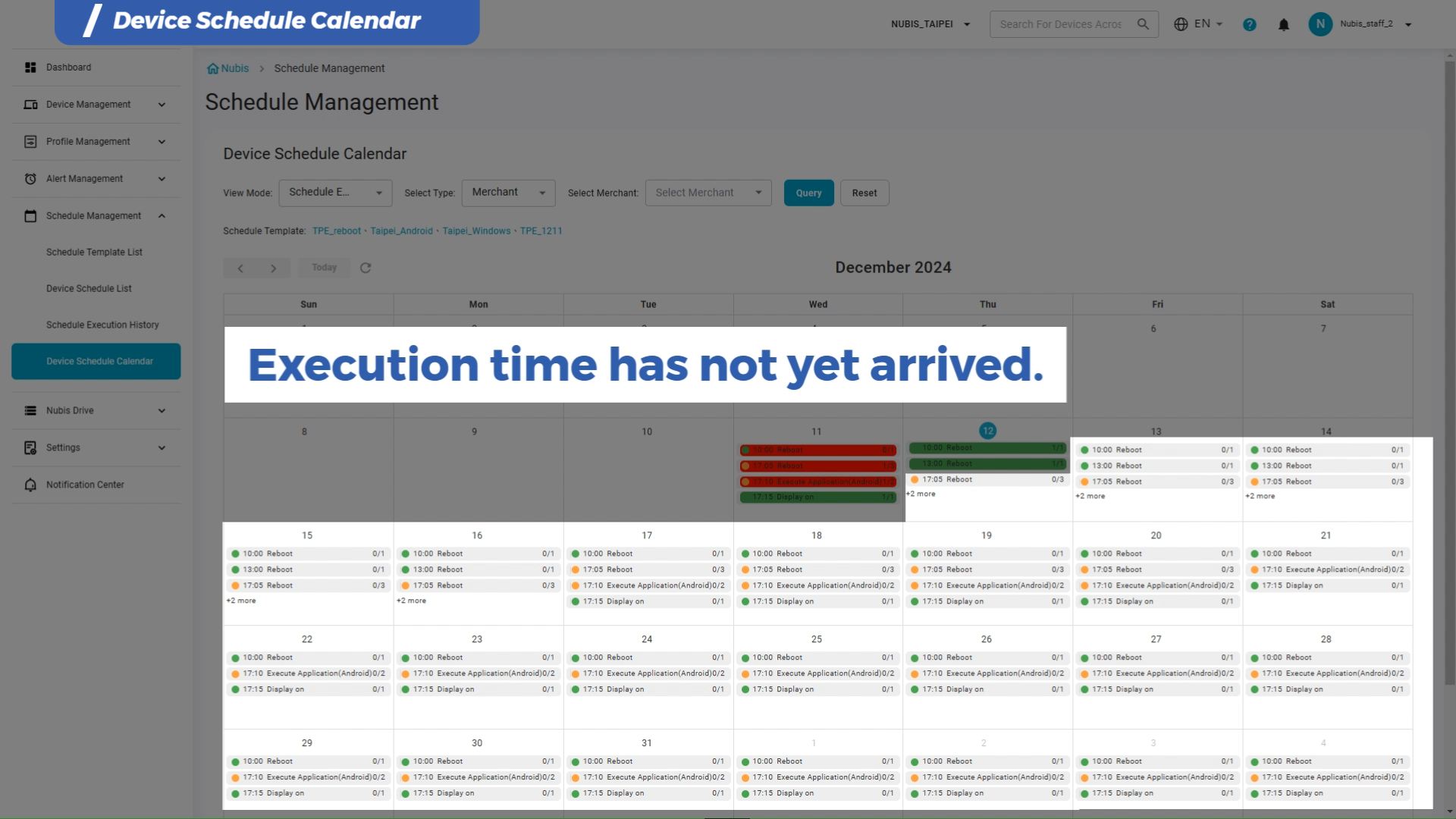

   • Gray color means that Execution time has not yet arrived.
     The designated execution time has not yet arrived. Since the devices scheduled for execution may be located across different time zones, the overall execution status displays the latest execution time plus an additional 10 minutes.
