Step 1: Enroll a Device(For Android Devices)

Step 1: Enroll a Device(For Android Devices)

Overview

You’re using Nubis today probably because your organization needs to manage their devices at scale. To start using Nubis for device management, you’ll need to enroll your devices.
You need to install Ora in all devices, so that Nubis can work. Ora will connects the edge(devices) and the cloud(Nubis). Transfer the required data and command to fulfill the functions in Nubis.

Nubis Operation Guiding Video (Nubis操作教學影片)


1. Download and install Ora

  1. Using your computer, download the Android Ora execution file from the Nubis login page. Access the link here: https://www.nubiscloud.io

  2. Using your computer, download the ADB installation file from the following link and extract it: https://drive.google.com/file/d/1qlNTaV_v0LpF4rjyTLJvboMIdM4pTUqX/view?usp=sharing
  3. Prepare the Android device you want to activate.
  4. On the Android device, open Developer options and turn on USB Debugging.
     (This button is usually under Settings, System, Advanced.)
    Warning
    Note that If you can’t find Developer options, go to Settings, About device, phone, tablet, then tap Build number seven times to enable it.
  5. Use a USB cable to connect the Android device to your computer, where the Android Device Bridge (ADB) tool has already been installed.
    1. If a pop-up appears on your Android device, please select "Allow" for debugging.
  6. Using the computer, put the downloaded "ora_android_general.apk" into the ADB folder.

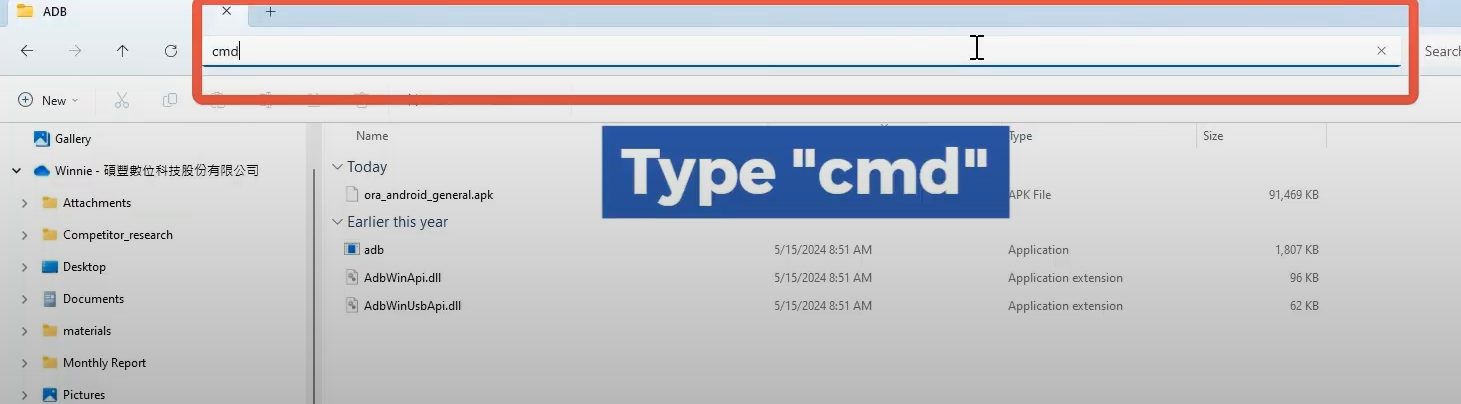

  7. Type “cmd” in the folder path to enter the command prompt.

  8. There are four sets of code as follows. Please copy and paste each set of code in order, one at a time.

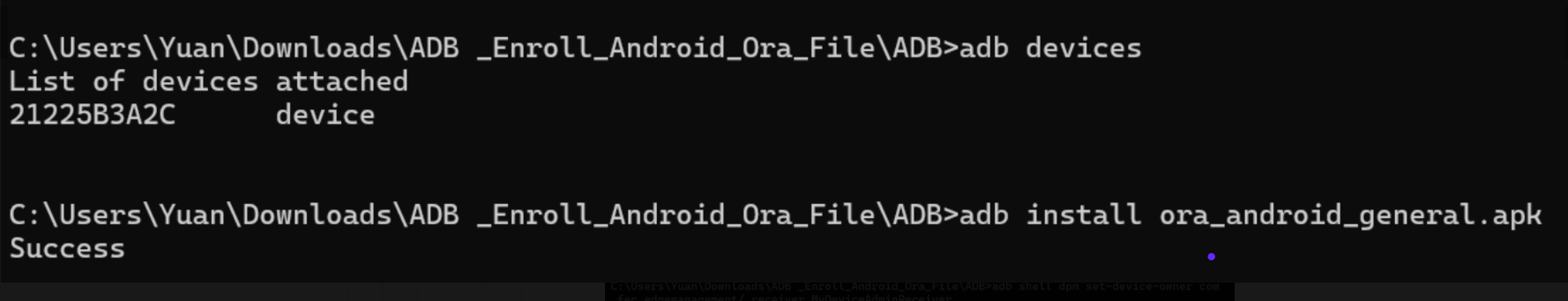

    1. adb devices
    2. adb install ora_android_general.apk


    3. adb shell dpm set-device-owner com.fec.edgemanagement/.receiver.MyDeviceAdminReceiver
      1. --> Here, please ensure that there are no existing accounts on the device, or there will be error message.

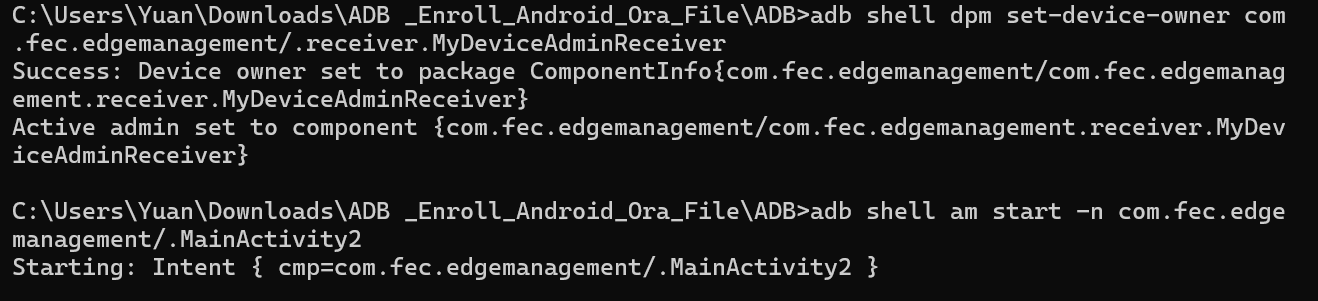

      2. The following picture shows the example of the success message.
    4. adb shell am start -n com.fec.edgemanagement/.MainActivity2

  9. Then go to the Android device side, At this point, your Android device will redirect to the Ora app authorization.

    1. Tap Ora to enable Accessibility permission.

    2. After enabling it, tap Back.

    3. Grant permission to modify system settings.

    4. Grant permission to display over other apps.

    5. Allow the other three Ora permissions.

    6. ensure there is no permission denied in settings > apps > ora

  10. Then tap the Ora icon, enter the next part - the activation process.

2. Activation process

  1. Click the icon of Android Ora. A pop-up will show.(Android Device Screen)
  2. Using your mobile to scan the QR code. Then, Mobile Screen will redirect to a web page to show you the device information.

  3. Enter the Company/Merchant TOKEN to activate the device. See the 3rd part in this page - How to get Token
    This Token will determine which Company/Merchant the device belongs to, and you can change the settings later if needed.

  4. Once you enter the Token, the Ora status will show as “Activated.”

3. How to get the TOKEN?

Go to either Account Center or Nubis to get your activation token.

1. Get the Company Token:

Account Center > View
The device will be assigned to the warehouse under the company.

2. Get the Merchant Token:

Nubis > select a company > Device Management > merchant & Device > Select a merchant > Profile Info
The device will be assigned to the warehouse under the company.

Switch to the target company if needed.


Device Management > merchant & Device > Select a merchant > Profile Info
